level 1 driving automation¶
driver support system (3.7.3.7) that provides either sustained lateral or sustained longitudinal vehicle (3.7.1.1) motion control within a specific operational design domain (3.7.3.2) with the expectation that a conventional driver (3.6.2.4) completes the DDT (3.7.3.1)
NOTE: Other driving automation levels include "level 2 driving automation" (3.7.3.9), "level 3 ADS" (3.7.3.11), "level 4 ADS" (3.7.3.12), and "level 5 ADS" (3.7.3.13).

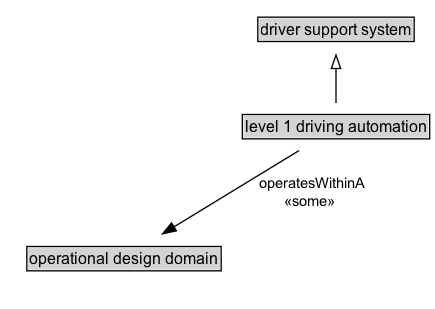

Formalization for level 1 driving automation¶
| Property | Constraint |
|---|---|
| operatesWithinA | some operationalDesignDomain |
| subClassOf | driverSupportSystem |
Other annotations¶
| Annotation | Value |
|---|---|
| altPrefLabel | driver assistance |
| clause | 3.7.3.8 |
| skos::historyNote | Introduced in ISO/TS 14812:2022 |
| skos::prefLabel | level 1 driving automation |
